The Marin Alpine Trail E1 sits squarely in the middle of the Alpine Trail family, packing performance and value in equal measure.
The Marin Alpine Trail E1 sits squarely in the middle of the Alpine Trail family, packing performance and value in equal measure.
Marin

Marin Alpine Trail E1 Electric Mountain Bike Green / Black

£3,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
Hassle free returns
Cancellation

We obviously want you to be 100% happy with your online purchase but if for some reason you are not then Highland Bikes offers a 28 day no quibble returns policy.

your order has not yet been dispatched then we should be able to cancel it immediately and process your refund. If however you order has been dispatched then you have 14 days from the day the goods were received to inform us of you intention to cancel. You then have a further 14 days to return the goods to Highland Bikes Ltd, Returns Dept, 29-31 Shore Street, Inverness,IV11NG. Returns received out with the 14 day period will not be accepted and will be shipped back to you at your cost.

If you are posting back your goods then you are required to complete a returns form. You will also need to contact us for a returns number. Any items sent back to us without the correct returns information will not be accepted.

Any items returned must be in unused condition in the original packaging. Any signs of over handling will result in a charge and/or reduction in the amount refunded. Damage to the original item packaging (not the shipping packaging) may result in your return being rejected and the item will be returned to you at your cost. If in doubt then please contact us before returning any items.

Refunds will be made within 14 days of receipt of the goods. Items must be returned at your own cost and we recommend that you use an insured service as the goods will remain yours until the item is refunded. We understand the return of larger items such as bicycles can be difficult to arrange so we can collect on your behalf. Prices for collection start at £50. Items that has been customised for you in any way are not subject to our normal returns policy and will be dealt with on an individual basis.

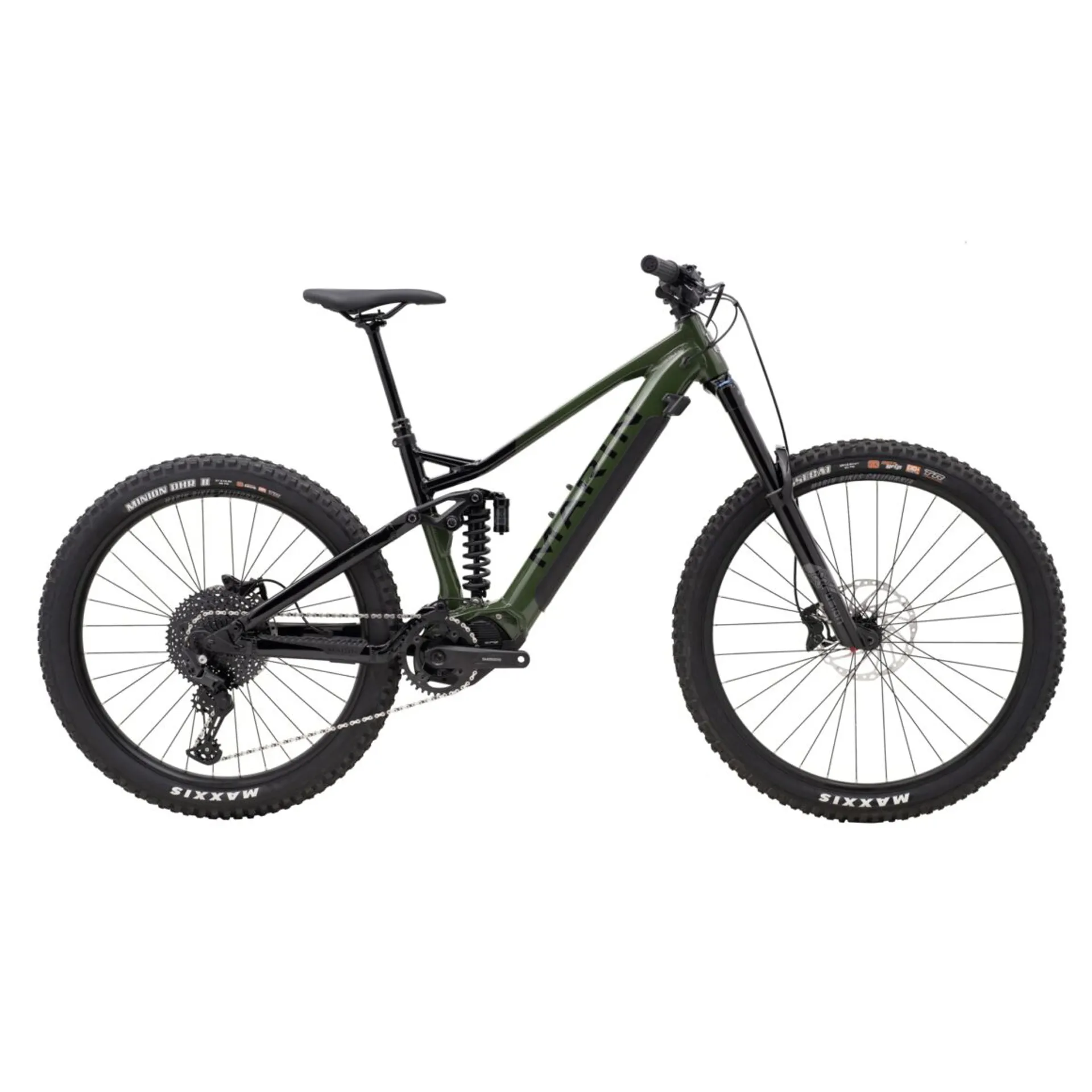

Marin Alpine Trail E1 Electric Mountain Bike Green / Black

Season:2024

Brand:Marin

Code:7365480GGBGLSGRNBLK

The Marin Alpine Trail E1 sits squarely in the middle of the Alpine Trail family, packing performance and value in equal measure.

Go E1 and you’ll get an upgrade to a 630Wh battery, X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension and a long-lasting, tough and reliable Shimano 11-speed Deore drivetrain.

Key upgrades from Alpine Trail E:

  • Shimano 630Wh battery
  • X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension
  • Shimano Deore 11-speed drivetrain w/11-51t cassette
Technical Information
  • Frame
    Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
  • Fork
    X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
  • Shock
    RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
  • Rims
    Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
  • Hub Rear
    Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body
  • Hub Front
    Shimano MT-410B, 110x15mm, centerlock Disc, 32H
  • Spokes
    14g Black Stainless Steel
  • Tires
    Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
  • Derailleur Rear
    Shimano Deore, Direct Attachment, 11-Speed, SGS
  • Shift Lever
    Shimano Deore, 11-Speed, I-Spec EV
  • Crankset
    Shimano EM600, 160mm Length, 38t Chainring
  • Motor
    Shimano Steps EP6 Drive Unit, 250W, 85Nm
  • Chain
    KMC X-10E, Silver
  • Cassette
    SunRace 11-Speed, 11-51T
  • Brakes Front
    Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
  • Brakes Rear
    Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
  • Brake Levers
    Shimano MT4100 Hydraulic Lever
  • Handlebar
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem
    Marin 3D Forged Alloy, 35mm
  • Grips
    Marin Grizzly Lock On
  • Headset
    FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost
    TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
  • Saddle
    Marin eMTB Saddle
  • Pedals
    Marin MTB Plastic
  • Battery
    BT-8036, Internal 630Wh
  • Display
    Shimano SC-E600
  • Switch
    SW-EN600L Left Hand Switch for Assist Mode Change
  • Extras
    Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
