The Arcade Fuse has been designed to bring the unique handling and performance characteristics of our class leading steel bike to more riders.
The Arcade Fuse has been designed to bring the unique handling and performance characteristics of our class leading steel bike to more riders.
Inspired Bikes

Inspired Arcade Fuse 24 Trials Bike Mirror Red

£1,139.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
Hassle free returns
Cancellation

We obviously want you to be 100% happy with your online purchase but if for some reason you are not then Highland Bikes offers a 28 day no quibble returns policy.

your order has not yet been dispatched then we should be able to cancel it immediately and process your refund. If however you order has been dispatched then you have 14 days from the day the goods were received to inform us of you intention to cancel. You then have a further 14 days to return the goods to Highland Bikes Ltd, Returns Dept, 29-31 Shore Street, Inverness,IV11NG. Returns received out with the 14 day period will not be accepted and will be shipped back to you at your cost.

If you are posting back your goods then you are required to complete a returns form. You will also need to contact us for a returns number. Any items sent back to us without the correct returns information will not be accepted.

Any items returned must be in unused condition in the original packaging. Any signs of over handling will result in a charge and/or reduction in the amount refunded. Damage to the original item packaging (not the shipping packaging) may result in your return being rejected and the item will be returned to you at your cost. If in doubt then please contact us before returning any items.

Refunds will be made within 14 days of receipt of the goods. Items must be returned at your own cost and we recommend that you use an insured service as the goods will remain yours until the item is refunded. We understand the return of larger items such as bicycles can be difficult to arrange so we can collect on your behalf. Prices for collection start at £50. Items that has been customised for you in any way are not subject to our normal returns policy and will be dealt with on an individual basis.

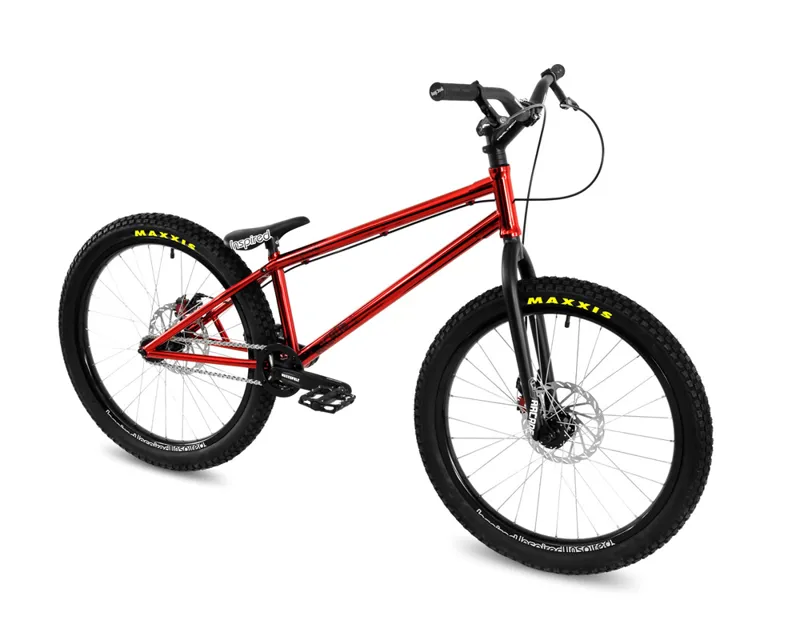

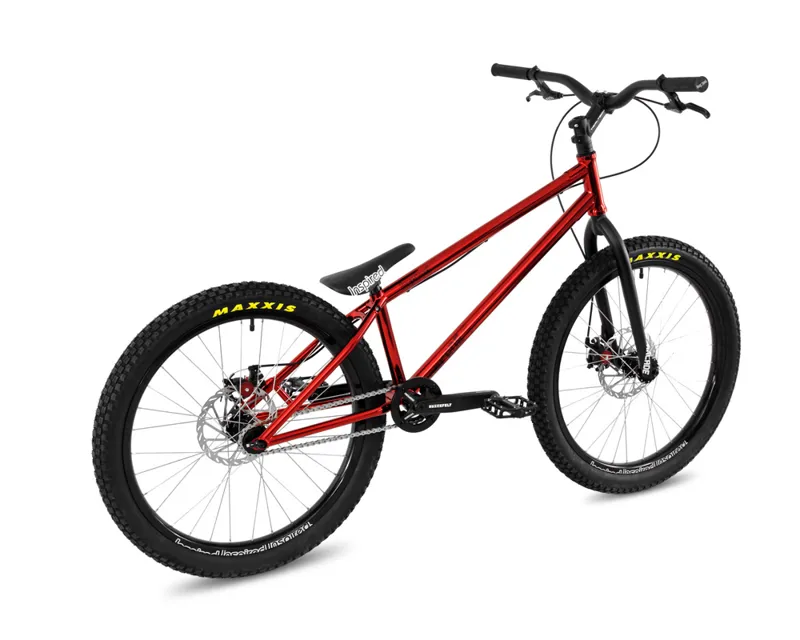

Inspired Arcade Fuse 24 Trials Bike Mirror Red

Brand:Inspired Bikes

Code:INSARCMRED

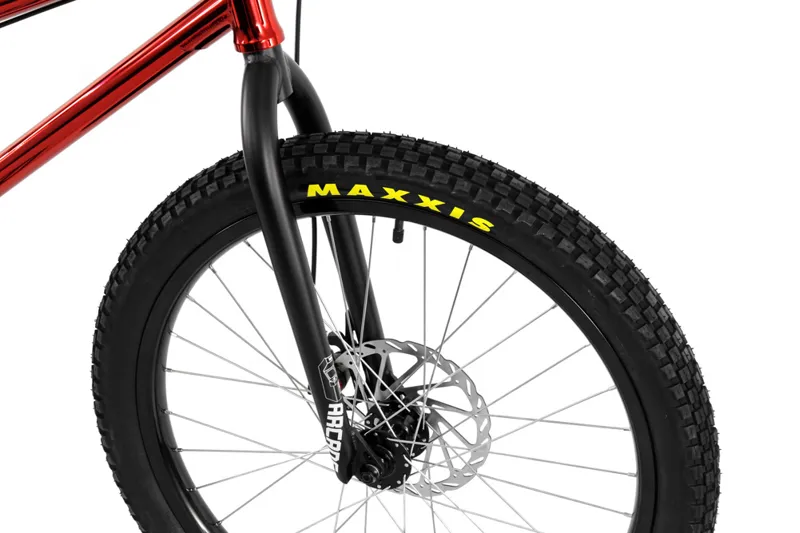

The Arcade frame and fork are made from high quality Japanese Cr-moly and feature double-butted tubing to ensure maximum durability while keeping the weight to a minimum. The Cr-moly steel offers a different feel to our aluminium frames by providing a more yielding ride which some people prefer. The fork features an optional 15mm bolt-through axle for maximum steering precision and to ensure everything stays in place - inspiring confidence in your riding and offering sharper reactions and an improved feel.

Short chainstays and a steep 74.5° head angle give the bike a short wheel base but a longer reach, meaning that the Arcade offers a comfortable ride with responsive and nimble geometry, whether you're rolling on two wheels or just on the front or back wheel - perfect for technical and progressive street trials riding!

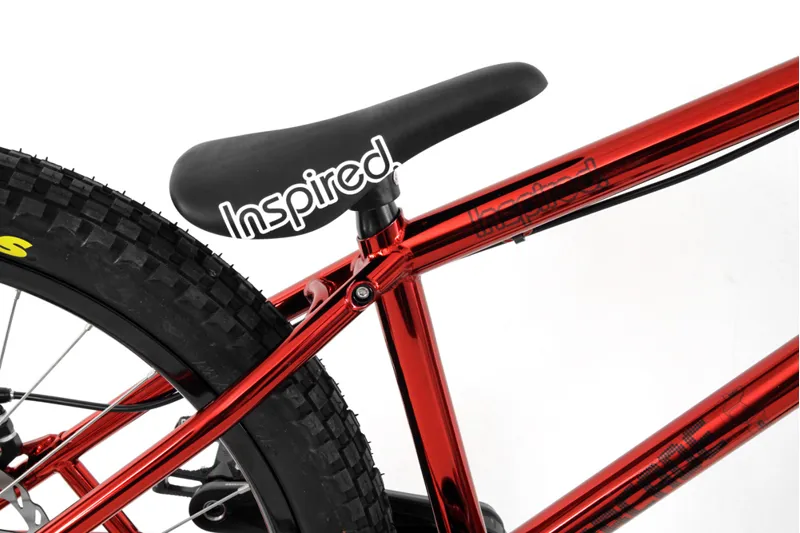

The head tube design has been updated to use a custom integrated bearing headset which enhances the appearance of the frame whilst maintaining strength.  The clean look is completed by a neat integrated seat clamp enclosed within the seat stay that allows the saddle to be dropped as low as possible for improved clearance.

Technical Information

Frame and Forks
- Frame: Inspired Arcade, Mirror Red
- Forks: Inspired Arcade, Matt Black

Wheels
- Front Hub: Trialtech Disc, 32h, Black
- Rear Hub: Trialtech Disc, 32h, 135mm, Black

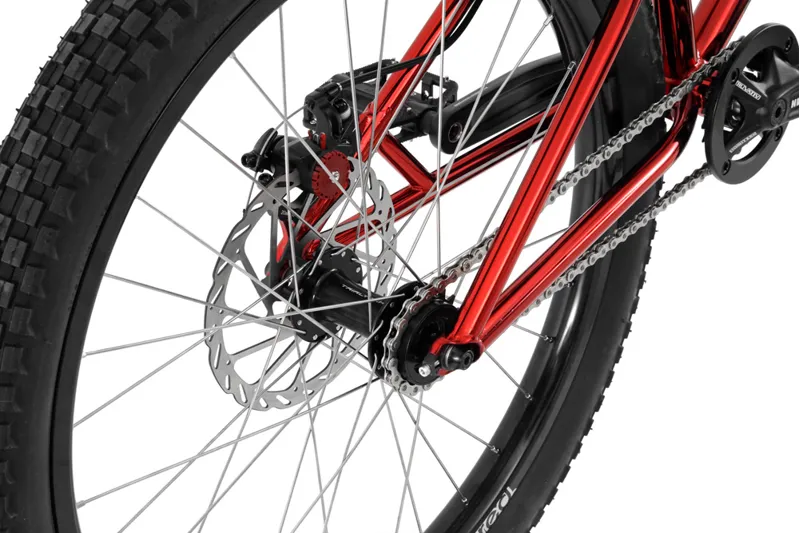

- Chain Tensioner: Inspired Arcade, Stainless Steel, Micro Chain Tugs, Black
- Front Rim: Inspired Flow, Black
- Rear Rim: Inspired Flow, Black
- Spokes: Stainless PG, Silver
- Front Tyre: Maxxis Holy Roller 24 x 2.4"
- Rear Tyre: Maxxis Holy Roller 24 x 2.4"

Brakes
- Front Brake: Avid FR5 Lever, Avid BB5 Caliper, 180mm Disc
- Rear Brake: Avid FR5 Lever, Avid BB5 Caliper, 180mm Disc

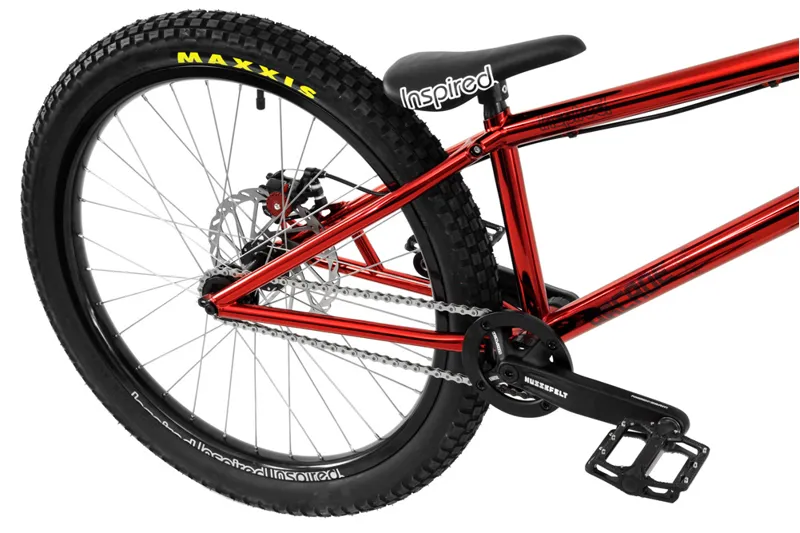

Drivetrain
- Cranks: Truvativ Hussefelt, 175mm, Black
- Front Sprocket: Truvativ 22T
- Chain: KMC Z610
- Freewheel: Trialtech Sport 16T, 72 engagement
- Pedals: Wellgo Platform, Black
- Bottom Bracket: Truvativ Howitzer
- Bashring: Truvativ Trials

Seating
- Saddle: Inspired Integrated, Black
- Seatpost: Inspired Integrated
- Seat Clamp: Integrated

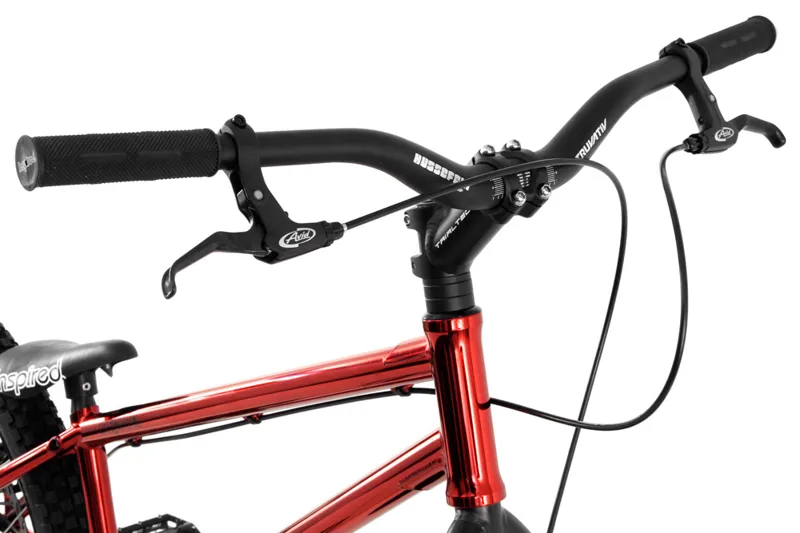

Steering
- Headset: Inspired Sealed Bearing Integrated, 1-1/8", Black
- Stem: Trialtech Race, Welded, 90mm x 35˚, Black
- Grips: Trialtech Race Rubber, Black
- Handlebars: Truvativ Hussefelt Comp, Black

Geometry
- Wheelbase: 1000mm (measured with Arcade fork)
- Chainstay: 364mm
- BB Height: +25mm
- Head Angle: 74.5˚

Weight
- 12.68kg (including pedals)
